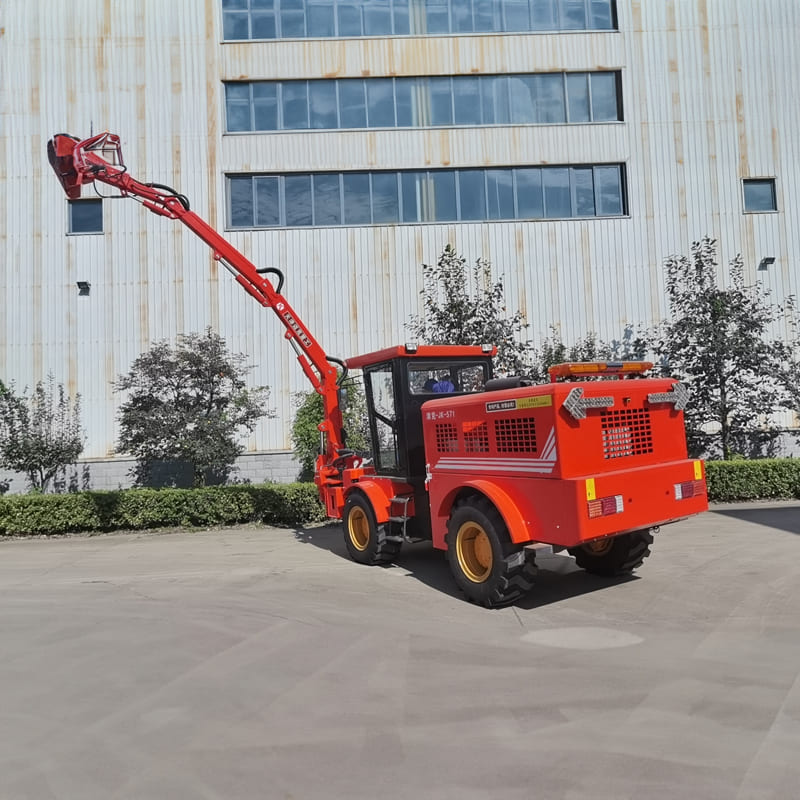

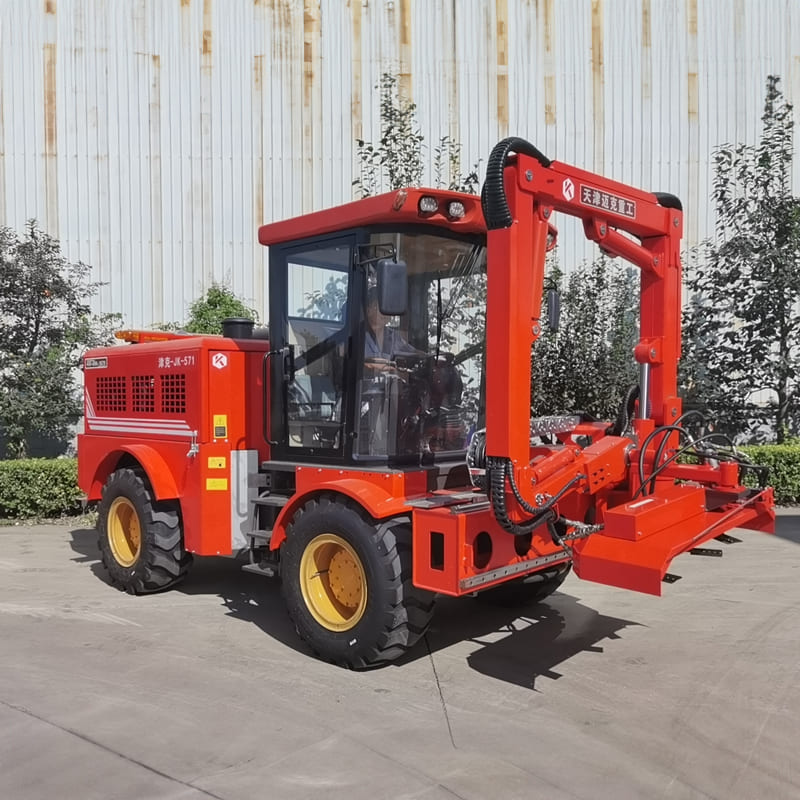

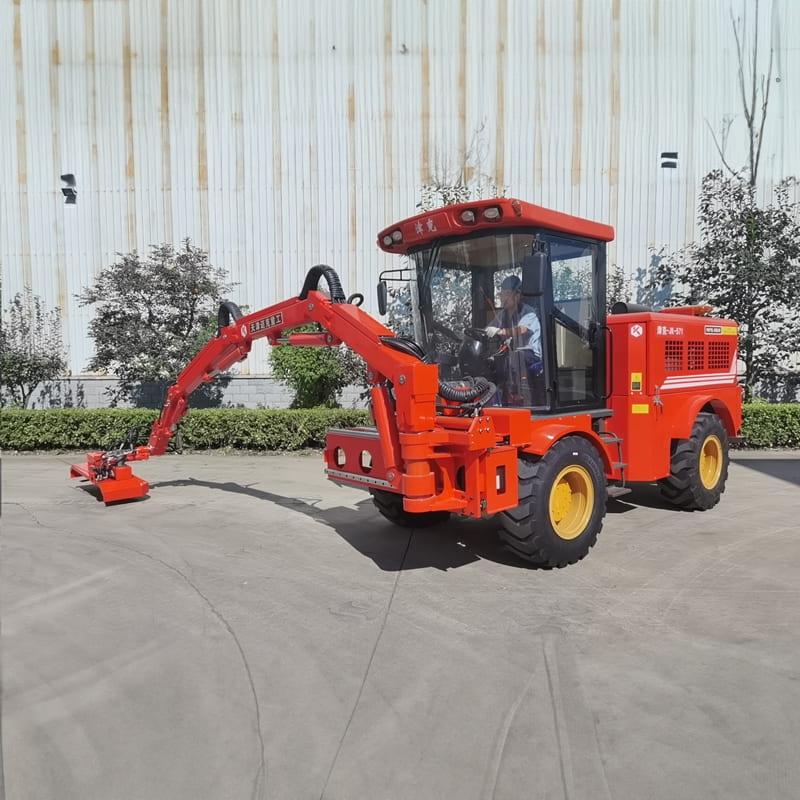

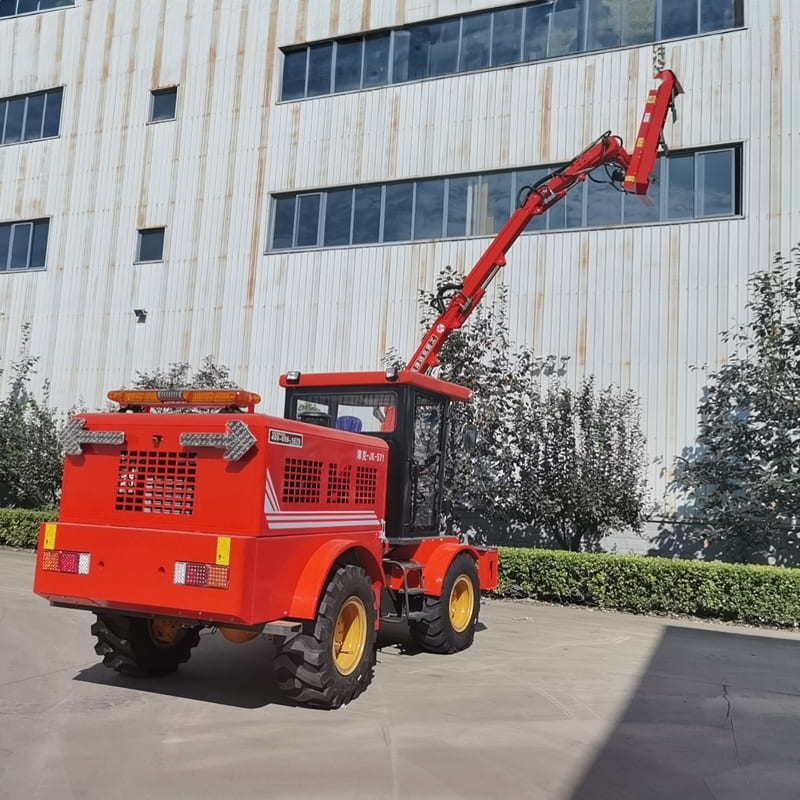

JK-571 Multi functional Trimmer

Self propelled trimmer

Specification and model:

5360X2140X2870mm

Applicable working conditions:
  • Expressway
  • Median zone
  • Side slope
  • Shrub
Whole machine weight: 4880KG
Length X Width X Height: 5360X2140X2870mm(Without attachment header)
Working arm left and right movement stroke: 1350mm
Left and right rotation angle of the working arm: 180°
Attachment head rotation angle: 360°
Number of driving wheels: 4X2
Cutting speed: 5-15km/h
Engine structural form: Four cylinder diesel fuel injection turbocharging
Automatic clutch transmission: The maximum speed for each gear is 5km/h for gear 1, 12km/h for gear 2, 24km/h for gear 3, and 30km/h for gear 4.
Hydraulic oil tank capacity: 125L
Diesel tank capacity: 110L
Maximum Attachment Head Width: 1800mm
Cutting outer width: 5450mm(Comes with standard 1200mm accessory head)
Cutting the highest: 7350mm(Comes with standard 1200 accessory head)
